CIRS 600軀干模體,CIRS 600模體

CIRS 600軀干模體,CIRS 600模體旨在為醫學成像和劑量測量應用提供平均軀干模型（22 cm前后厚度）的準確模擬。用于制造模體的環氧材料提供診斷和治療能量范圍（40 keV到20 MeV）之間的最佳組織模擬。
CIRS 600軀干模體,CIRS 600模體不同于其他橫斷面劑量測量模型，模型600包括內部器官結構例如肺，心臟，肝臟，腎臟，脾臟和胰腺。所有模擬的器官都與實際器官的組織密度相匹配，可以清晰地顯示出來。
模體的下半部分包含一個模擬30％脂肪和70％肌肉組織混合物的軟彈丸材料。模擬肌肉材料層肋骨和脊柱。外部信封模擬43％脂肪和57％肌肉組織的混合物。標準模體由25毫米厚的連續部分組成。
CIRS 600軀干模體,CIRS 600模體特點和好處
包括內部器官結構
理想的校準，質量保證和培訓的目的，當特定的內部器官感興趣
可以配置為適應多種劑量測量介質
可用于任何X射線成像或治療設備

CIRS 600軀干模體,CIRS 600模體包括的材料
組織相當?shù)能|干
與骨骼腔 結構體
組織當量肺，
心臟，肝臟，胰臟， 脾臟和腎臟
泡沫襯里的手提箱

CIRS 600軀干模體,CIRS 600模體保修信息
4年保修

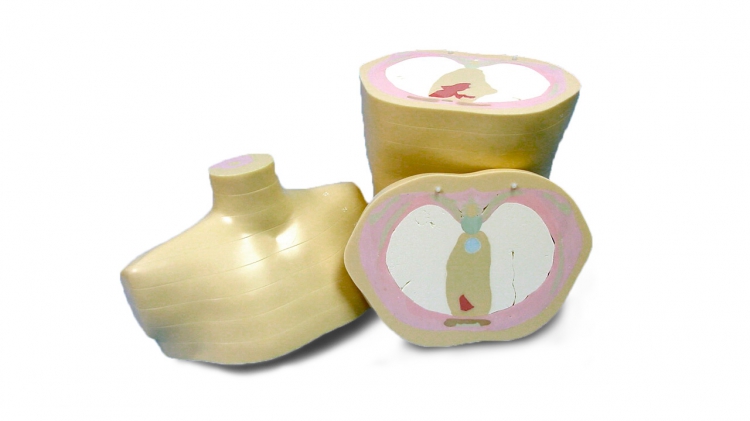

The CIRS Model 600 Anthropomorphic Torso Phantom is designed to provide an accurate simulation of an average torso (22 cm posterior-anterior thickness) for medical imaging and dosimetry applications. The epoxy materials used to fabricate the phantom provide optimal tissue simulation between the Diagnostic and Therapy energy range (40 keV to 20 MeV).

Unlike other cross-sectional dosimetry phantoms, the Model 600 includes internal organ structures such as the lungs, heart, liver, kidneys, spleen and pancreas. All simulated organs match the tissue density of actual organs and can be clearly visualized.

The lower portion of the phantom contains a soft bolus material simulating a mix of 30 percent adipose and 70 percent muscle tissue. Simulated muscle material layers the rib cage and vertebral column. The exterior envelope simulates a mix of 43 percent adipose and 57 percent muscle tissue.  Standard phantoms consist of 25 mm thick contiguous sections.

Includes internal organ structures

Ideal for calibration, QA and training purposes when specific internal organs are of interest

Can be configured to accommodate a multitude of dose measurement media

Usable on any X-ray imaging or treatment device
