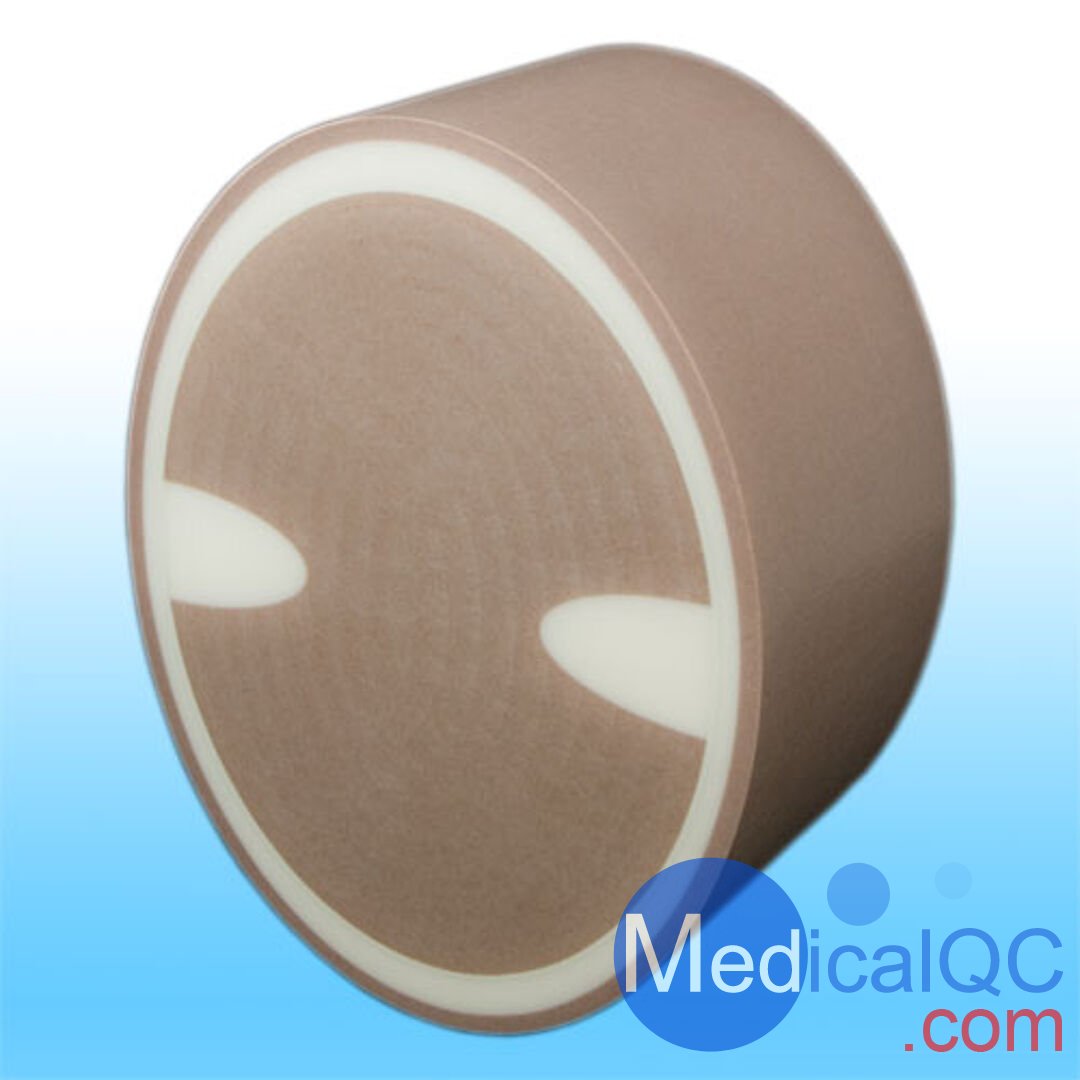

QRM-Cranial-CT-Phantom，顱腦CT模型，Cranial CT Phantom用于 CT/FD-CT 成像的人腦解剖結構模擬

QRM-Cranial-CT-Phantom，顱腦CT模型，Cranial CT Phantom基于具有不同 kV 設置的恒定 CT 值的軟組織等效塑料和具有類似于人類頭骨的 X 射線吸收的周圍骨骼結構，人類大腦的兩個不同部分可用。

一節描述了具有與顳骨相同的均勻軟組織和骨結構的顱底。本部分適用于演示和評估顱底的圖像質量，特別是受光束硬化效應、部分體積效應和掃描儀不穩定引起的偽影（例如陽極擺動）的影響。

第二部分旨在測試成像系統的低對比度能力。在均勻的軟組織內，幾個低對比度結構模擬了大腦的典型皮層結構和中央低對比度結構。

QRM-Cranial-CT-Phantom，顱腦CT模型，Cranial CT Phantom技術參數：

尺寸：180 毫米 x 140 毫米 x 85 毫米
組織材料：

The cranial phantom mimics the

human brain anatomy for CT imaging.

Based on a soft tissue equivalent plastic with a constant CT-number for the different kV settings and a surrounding bone structure with an X-ray absorption similar to the human skull, two different section of the human brain are realized.

One section describes the base of the skull with uniform soft tissue and bony structures equivalent to the temporal bones. This section is suitable to demonstrate and evaluate the image quality in the base of the skull, especially affected by beam hardening effects, partial volume effects and artifacts caused by scanner instabilities, e.g. anode wobble.

The second section was designed to test the low contrast capabilities of the imaging system. Within the uniform soft tissue several low contrast structure simulating typical cortex structures and central low contrast structures of the brain.
