RSD RS-542甲狀腺模體,核醫學甲狀腺模體
型號：RSD RS-542 類別： 質控模體 品牌：美國RSD pdf資料: RSD RS-542甲狀腺模體,核醫學甲狀腺模體.pdf
采購熱線：0755-28896837 13632925349
在線咨詢產品

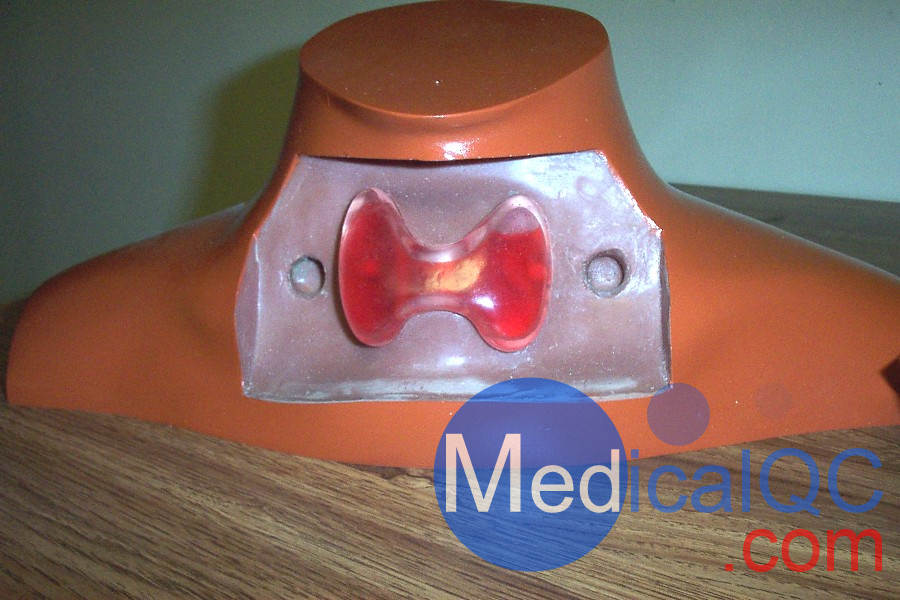

RSD RS-542甲狀腺模體用于核醫學圖像研究的人體甲狀腺器官的實驗?zāi)Ｐ停?br />
Thyroid Phantom包含一個帶有相應“Superhuman Skeleton”椎骨的頸部，一個帶有填充和沖洗端口的空心甲狀腺，以及一個組織等效體模材料的前蓋。
該組件設計用于快速移除蓋板和甲狀腺，快速填充同位素溶液和同樣快速的重新組裝。這允許使用非常短的半衰期的碘。包括一部分鎖骨和胸骨以進一步增強體模的真實感。
RSD經常使用同位素制造活動器官以滿足用戶的需求?？梢允褂没顒幽z囊以適合網格孔，或者可以提供空膠囊以由用戶填充。
RSD通常提供所需的同位素，但如果需要，用戶可以提供它們。
同位素通常作為校準解決方案接收，可溯源至NIST。通過來自校準溶液的微量移液等分試樣來控制器官裝載。鈾和钚可以按質量追溯到NIST。其他同位素通常可通過活動追蹤。
有些同位素僅在一年中間隔生產，因此交付需視供應情況而定。在某些情況下，來自政府來源的校準成本會受到很大波動的影響。
RSD RS-542甲狀腺模體訂購信息：
型號
RS-500
勞倫斯利弗莫爾現實模體系統包括：軀干和網狀軀干覆蓋，惰性心臟，肺，淋巴結，肝臟和肝臟包膜或腹部內容物。器官位置和軀干內軟組織連續性所需的所有塊。文檔。永久運輸和存儲案例。
型號
RS-550
Fission-Product Phantom System， 包括：用于甲狀腺通路的頭部，頸部，頸部蓋板，完整的軀干和網狀軀干覆蓋物，惰性心臟，肺，淋巴結，甲狀腺，肝臟，腎臟，胃，胰腺，脾臟，小腸和大腸。用樞軸螺栓固定腿。文檔。永久運輸和存儲案例。
膠囊
RS-520
活性膠囊（同位素和活性指定）
RS-521
惰性膠囊，帶密封蓋，由用戶填充
Thyroid Phantom
RS-542
沒有頭的甲狀腺模體; 包括頸部，空心甲狀腺，甲狀腺覆蓋，頸椎的一部分，胸骨和鎖骨
RS-545甲狀
體模型頭部; （與RS-542相同，但頸部和頸椎完整）
RS-543A
甲狀腺，實心，活性
RS-534S
甲狀腺，中空，惰性
胸罩疊板
RS-513
（1,2,3,4）
（A，B，C） 胸部覆蓋板（4種厚度中的任何一種）
＃1 - 最薄，＃4 - 最厚
= A）87％脂肪--13％肌肉
B）50％脂肪 - 50％肌肉
C）100％肌肉
RS-514
（A，B，C） 胸部覆蓋板
在材料A，B或C中設置為4
The Thyroid Phantom is an integral part of the Fission-Product Phantom, but it can also be supplied separately (with or without a head). This phantom has the same contours as in the full Fission-Product Phantom.
The Thyroid Phantom contains a neck with corresponding “Superhuman Skeleton” vertebrae, a hollow-shell thyroid with filling and flushing ports, and a front cover of tissue-equivalent phantom material.
This assembly has been designed for rapid removal of the cover plate and thyroid, a quick fill with an isotope solution and an equally rapid reassembly. This permits work with iodines of very short half-lives. A portion of the clavicles and sternum are included to further enhance the realism of the phantom.
RSD routinely manufactures active organs with isotopes to suit users’ needs. Active capsules to fit into the gridded holes are available, or empty capsules can be supplied to be filled by the user.
RSD usually supplies the required isotopes, but users may furnish them if so desired.
Isotopes are most often received as calibrated solutions, traceable to the NIST. Organ loading is controlled by micropipetting aliquots from the calibrated solutions. Uraniums and plutoniums are traceable to the NIST by mass. Other isotopes are usually traceable by activity.
Some isotopes are manufactured only at intervals throughout the year, so delivery is subject to availability. In some cases, calibration costs from governmental sources are subject to wide fluctuations.
Model Number
RS-500

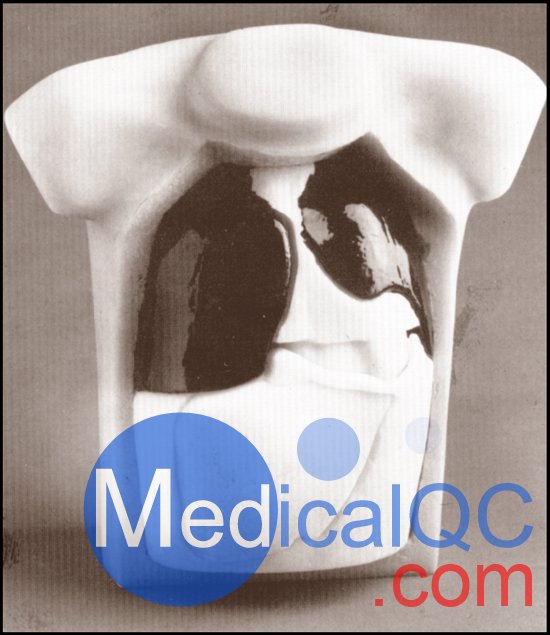

Lawrence Livermore Realistic Phantom System includes: torso and gridded torso cover, inert heart, lungs, lymph nodes, liver and liver envelope or abdominal contents. All blocks needed for organ location and soft tissue continuity within torso. Documentation. Permanent shipping and storage case.
Model Number
RS-550

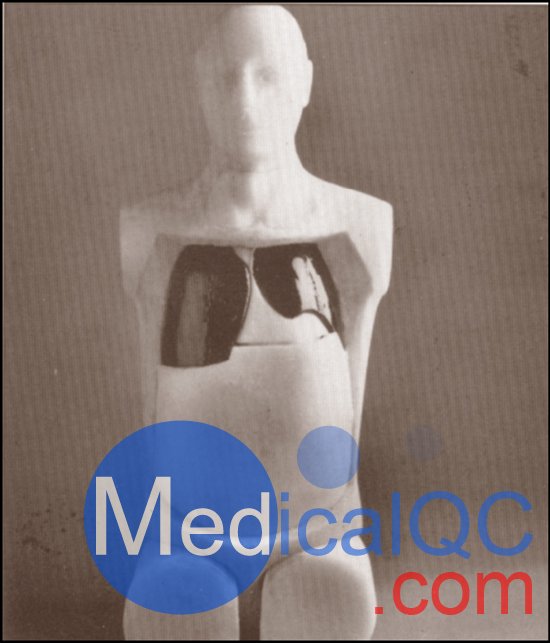

Fission-Product Phantom System, includes: head, neck, neck cover plate for thyroid access, complete torso and gridded torso cover, inert heart, lungs, lymph nodes, thyroid, liver, kidneys, stomach, pancreas, spleen, small and large intestines. Stub legs with pivot bolts. Documentation. Permanent shipping and storage case.
Capsules
RS-520
Active Capsule (isotope and activity to be specified)
RS-521
Inert Capsule with sealing cap, to be filled by user
Thyroid Phantom
RS-542
Thyroid Phantom without head; consists of neck, hollow thyroid, thyroid cover, a portion of the cervical spine, sternum and clavicles
RS-545
Thyroid Phantom with head; (same as RS-542 but with head and full cervical spine)
RS-543A
Thyroid, solid, active
RS-534S
Thyroid, hollow, inert
Chest Overlay Plates
RS-513
(1, 2, 3, 4)
(A, B, C) Chest Overlay Plate (Any of 4 thicknesses)
#1 – thinnest, #4 – thickest
=A) 87% adipose – 13% muscle
B) 50% adipose – 50% muscle
C) 100% muscle
RS-514
(A, B, C) Chest Overlay Plates
Set of 4, in materials A, B, or C
1.甲狀腺模型是核醫學圖像全身模型的一個組成部分，可以單獨提供（帶頭部或不帶頭部加工可供選擇）。
2.甲狀腺模型包含一個頸部椎骨，帶有注射和排空端口的中空甲狀腺包囊和由組織等效材料構成的保護蓋板
3.組件設計用于快速移除蓋板和甲狀腺，快速填充同位素溶液以及同樣快速的重新組裝。允許使用半衰期較短的碘溶劑
RSD RS-542甲狀腺模體是Fission-Product Phantom的一個組成部分，但它也可以單獨提供 （帶或不帶頭）。這個模型具有與完整Fission-Product Phantom相同的輪廓。3.組件設計用于快速移除蓋板和甲狀腺，快速填充同位素溶液以及同樣快速的重新組裝。允許使用半衰期較短的碘溶劑
Thyroid Phantom包含一個帶有相應“Superhuman Skeleton”椎骨的頸部，一個帶有填充和沖洗端口的空心甲狀腺，以及一個組織等效體模材料的前蓋。
該組件設計用于快速移除蓋板和甲狀腺，快速填充同位素溶液和同樣快速的重新組裝。這允許使用非常短的半衰期的碘。包括一部分鎖骨和胸骨以進一步增強體模的真實感。
RSD經常使用同位素制造活動器官以滿足用戶的需求?？梢允褂没顒幽z囊以適合網格孔，或者可以提供空膠囊以由用戶填充。
RSD通常提供所需的同位素，但如果需要，用戶可以提供它們。
同位素通常作為校準解決方案接收，可溯源至NIST。通過來自校準溶液的微量移液等分試樣來控制器官裝載。鈾和钚可以按質量追溯到NIST。其他同位素通常可通過活動追蹤。
有些同位素僅在一年中間隔生產，因此交付需視供應情況而定。在某些情況下，來自政府來源的校準成本會受到很大波動的影響。
RSD RS-542甲狀腺模體訂購信息：
型號
RS-500
勞倫斯利弗莫爾現實模體系統包括：軀干和網狀軀干覆蓋，惰性心臟，肺，淋巴結，肝臟和肝臟包膜或腹部內容物。器官位置和軀干內軟組織連續性所需的所有塊。文檔。永久運輸和存儲案例。
型號
RS-550
Fission-Product Phantom System， 包括：用于甲狀腺通路的頭部，頸部，頸部蓋板，完整的軀干和網狀軀干覆蓋物，惰性心臟，肺，淋巴結，甲狀腺，肝臟，腎臟，胃，胰腺，脾臟，小腸和大腸。用樞軸螺栓固定腿。文檔。永久運輸和存儲案例。
膠囊
RS-520
活性膠囊（同位素和活性指定）
RS-521
惰性膠囊，帶密封蓋，由用戶填充
Thyroid Phantom
RS-542
沒有頭的甲狀腺模體; 包括頸部，空心甲狀腺，甲狀腺覆蓋，頸椎的一部分，胸骨和鎖骨
RS-545甲狀
體模型頭部; （與RS-542相同，但頸部和頸椎完整）
RS-543A
甲狀腺，實心，活性
RS-534S
甲狀腺，中空，惰性
胸罩疊板
RS-513
（1,2,3,4）
（A，B，C） 胸部覆蓋板（4種厚度中的任何一種）
＃1 - 最薄，＃4 - 最厚
= A）87％脂肪--13％肌肉
B）50％脂肪 - 50％肌肉
C）100％肌肉
RS-514
（A，B，C） 胸部覆蓋板
在材料A，B或C中設置為4
The Thyroid Phantom is an integral part of the Fission-Product Phantom, but it can also be supplied separately (with or without a head). This phantom has the same contours as in the full Fission-Product Phantom.
The Thyroid Phantom contains a neck with corresponding “Superhuman Skeleton” vertebrae, a hollow-shell thyroid with filling and flushing ports, and a front cover of tissue-equivalent phantom material.
This assembly has been designed for rapid removal of the cover plate and thyroid, a quick fill with an isotope solution and an equally rapid reassembly. This permits work with iodines of very short half-lives. A portion of the clavicles and sternum are included to further enhance the realism of the phantom.
RSD routinely manufactures active organs with isotopes to suit users’ needs. Active capsules to fit into the gridded holes are available, or empty capsules can be supplied to be filled by the user.
RSD usually supplies the required isotopes, but users may furnish them if so desired.
Isotopes are most often received as calibrated solutions, traceable to the NIST. Organ loading is controlled by micropipetting aliquots from the calibrated solutions. Uraniums and plutoniums are traceable to the NIST by mass. Other isotopes are usually traceable by activity.
Some isotopes are manufactured only at intervals throughout the year, so delivery is subject to availability. In some cases, calibration costs from governmental sources are subject to wide fluctuations.
Model Number
RS-500
Lawrence Livermore Realistic Phantom System includes: torso and gridded torso cover, inert heart, lungs, lymph nodes, liver and liver envelope or abdominal contents. All blocks needed for organ location and soft tissue continuity within torso. Documentation. Permanent shipping and storage case.
Model Number
RS-550
Fission-Product Phantom System, includes: head, neck, neck cover plate for thyroid access, complete torso and gridded torso cover, inert heart, lungs, lymph nodes, thyroid, liver, kidneys, stomach, pancreas, spleen, small and large intestines. Stub legs with pivot bolts. Documentation. Permanent shipping and storage case.
Capsules
RS-520
Active Capsule (isotope and activity to be specified)
RS-521
Inert Capsule with sealing cap, to be filled by user
Thyroid Phantom
RS-542
Thyroid Phantom without head; consists of neck, hollow thyroid, thyroid cover, a portion of the cervical spine, sternum and clavicles
RS-545
Thyroid Phantom with head; (same as RS-542 but with head and full cervical spine)
RS-543A
Thyroid, solid, active
RS-534S
Thyroid, hollow, inert
Chest Overlay Plates
RS-513
(1, 2, 3, 4)
(A, B, C) Chest Overlay Plate (Any of 4 thicknesses)
#1 – thinnest, #4 – thickest
=A) 87% adipose – 13% muscle
B) 50% adipose – 50% muscle
C) 100% muscle
RS-514
(A, B, C) Chest Overlay Plates
Set of 4, in materials A, B, or C
