CIRS 008PL動態平臺，CIRS動態平臺簡介：


CIRS 008PL動態平臺為與放射治療中的腫瘤運動和患者定位相關的復雜任務提供了經濟，用戶友好的解決方案。

CIRS 008PL動態平臺由堅硬的低密度塑料制成。該設備可以精確控制高達70毫米的任何模體，高達50毫米的劣等優勢運動。主平臺上的可拆卸銷釘系統可以實現幾乎任何模體的一致放置和固定，傳統的激光對準標記可以精確定位整個設備。一個獨立控制的小平臺提供后路 - 前路替代胸壁運動。

CIRS 008PL動態平臺使用CIRS運動控制軟件運行，這是一個用戶友好的圖形用戶界面，可以安裝在任何運行Windows XP的計算機上。

CIRS 008PL動態平臺特征
以亞毫米的精度和可重復性移動任何模體
代理和模體運動完全和獨立可編程
便于運輸，安裝和操作
運動軟件支持不同的周期，振幅和波形
代孕呼吸平臺可容納眾多的門控設備
原產地：美國







The CIRS Dynamic Platform provides an economical, user-friendly solution for the complex tasks associated with tumor motion and patient positioning in radiation therapy.

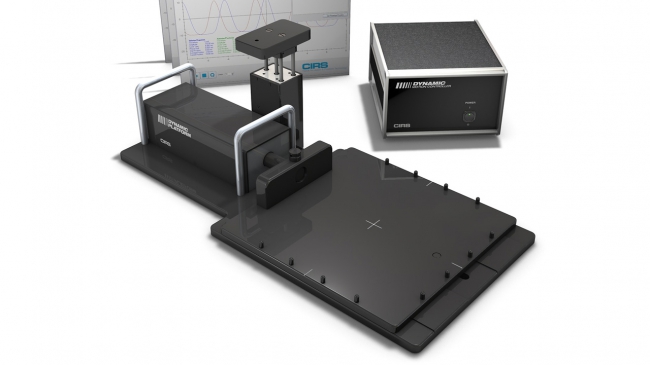

The platform is made from stiff, low-density plastics. The device enables precisely controlled inferior-superior motion up to 50 mm for any phantom up to 70 lbs. A removable pin system in the main platform allows consistent placement and fixation of almost any phantom and traditional laser alignment marks enable accurate positioning of the entire device. An independently controlled smaller platform provides Posterior-Anterior surrogate chest wall motion.

The CIRS Dynamic Platform is operated using CIRS Motion Control Software, a user-friendly graphical user interface that can be installed on any computer running Windows XP or Vista.

Move any phantom with sub-millimeter accuracy and reproducibility

Surrogate and phantom motion fully and independently programmable

Easy transport, set-up and operation

Motion software enables different cycles, amplitudes and waveforms

Surrogate breathing platform accommodates numerous gating devices
