當前位置： 網站首頁 > 質控設備 > 質控儀器 > HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900
HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900

HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900

型號：5520/5510/5550/5540/5530/5570/4900 類別： 質控儀器 品牌：Hans Rudolph pdf資料: HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900.pdf
采購熱線：0755-28896837  13632925349 在線咨詢產品    HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900在線咨詢QQ:274798107
HansRudolph提供10、100、500、1000、3000和7000 ml的容量。可調擋塊，用于每種注射器尺寸的其他較小行程。可選的出口直徑。NIST可追溯性。100％泄漏測試。重新校準服務和貸款計劃。

RUDOLPH VOLUME CALIBRATION SYRINGES Series 5520, 5510, 5550, 5540, 5530, 5570, 4900

HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900產品特性


•校準的注射器在全沖程體積范圍為10毫升到7000毫升。

•精密缸徑要么精細打磨硬陽極氧化鋁或機械加工和拋光拋丙烯酸

•密封元件要么是專有的高磨損潤滑橡膠，要么是機加工的平板彈簧

加載純特氟隆夾套式

•活塞桿是磨鋁與黑色陽極或注塑長玻璃填充尼龍

活塞桿刻度要么是車床切割(加工)，要么是激光標記

•可提供標準和定制尺寸的出口端口

•可調滑動正停止衣領為不同交付卷，包括收緊扳手

•現場可提供用于檢測注射器泄漏的插頭

•每個注射器體積認證和泄漏測試

漢斯魯?shù)婪蛐?zhǔn)注冊器5520/5510/5550/5540/5530/5570/4900

3升注射器用于校準肺功能測試設備，包括：Koko肺活量計，Cyber??medic Full Gas Systems，Morgan Scientific和Collins Full Gas Systems。

具有已知的校準體積作為標準的校準注射器提供了一種定期可靠地校準和測量現場呼吸量測量設備的精度的簡便可靠的方法，以滿足質量保證程序的要求。建議將三升作為測試肺活量計的最小容積。

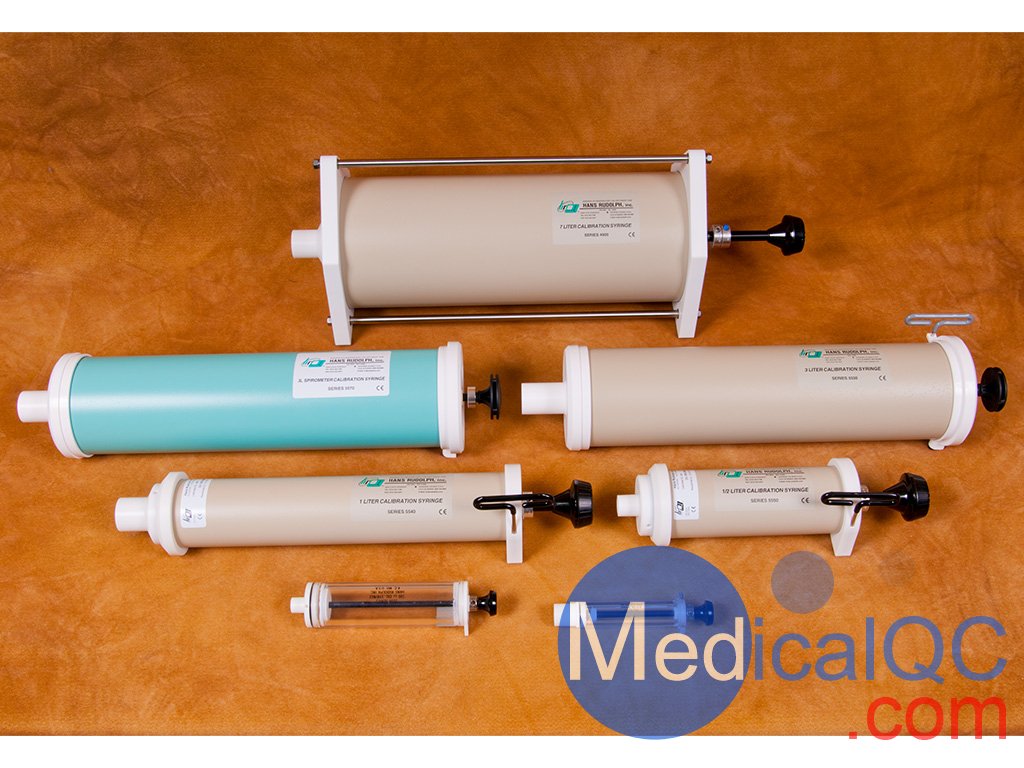

HansRudolph 5530/5520/5570/4900


HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900用途介紹：


容積校準注射器是設計用來測試和校準流量和體積的用于呼吸設備市場的測量設備。校準注射器為手動操作，通過驅動活塞桿進出氣缸總成的注射器組件的出口端口應安裝在被測設備上。漢斯·魯?shù)婪?br />
提供定制的出口端口，以配合市場上的任何肺活量測量裝置的校準注射器在啟動時應將已知體積的空氣輸送到流量或體積中測量設備。操作員將所送的校準注射器體積與所送的注射器體積進行比較從被測設備獲得的體積結果，以確定準確度。

校準注射器用于呼吸流量計的校準

容積式肺量計。這些設備是肺活量測定系統的典型組成部分

以及肺功能測試系統校準注射器用于肺部功能測試實驗室，生物醫學工程校準實驗室，私人醫生辦公室，大學，研究中心和呼吸系統制造商。

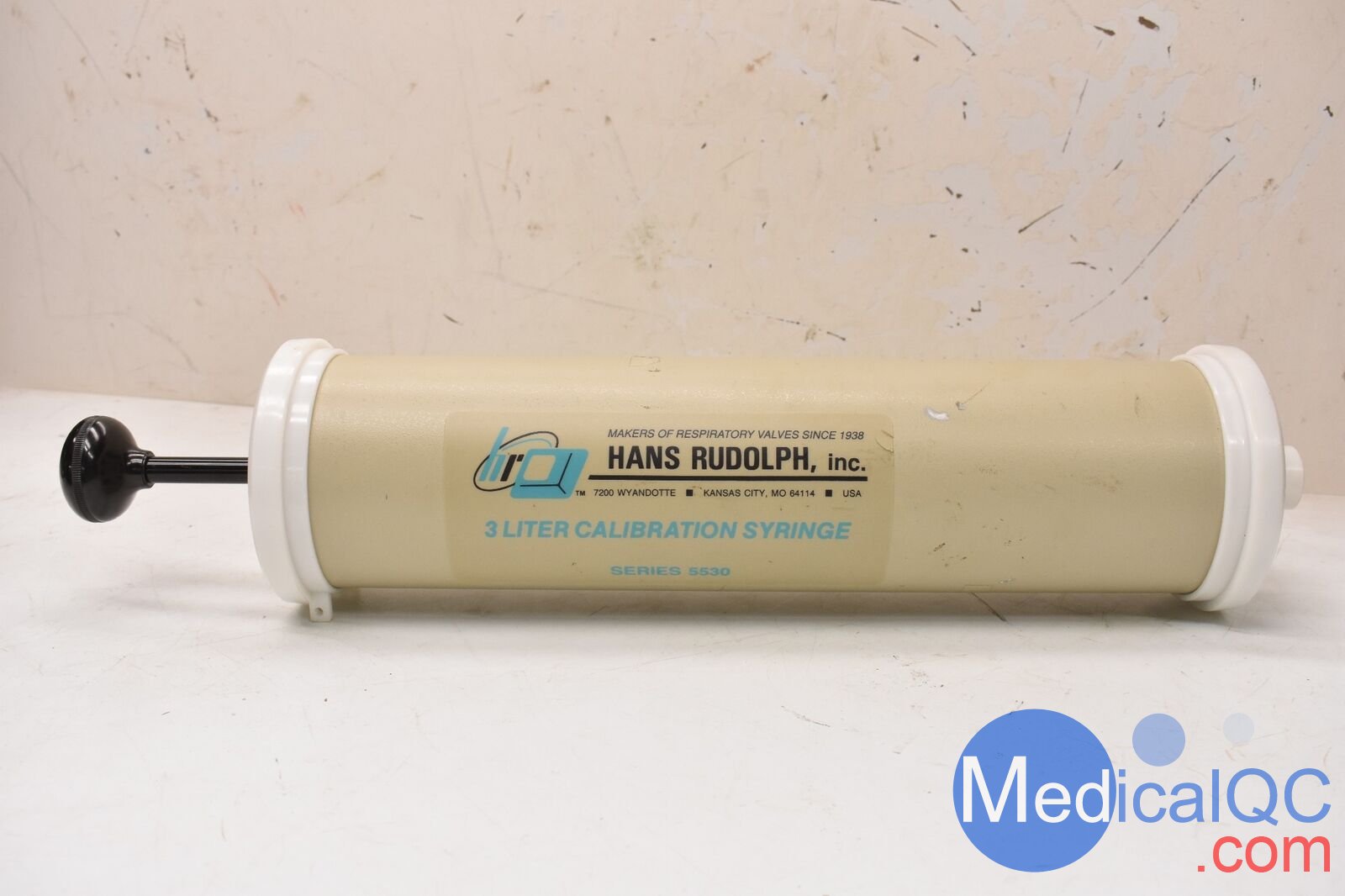

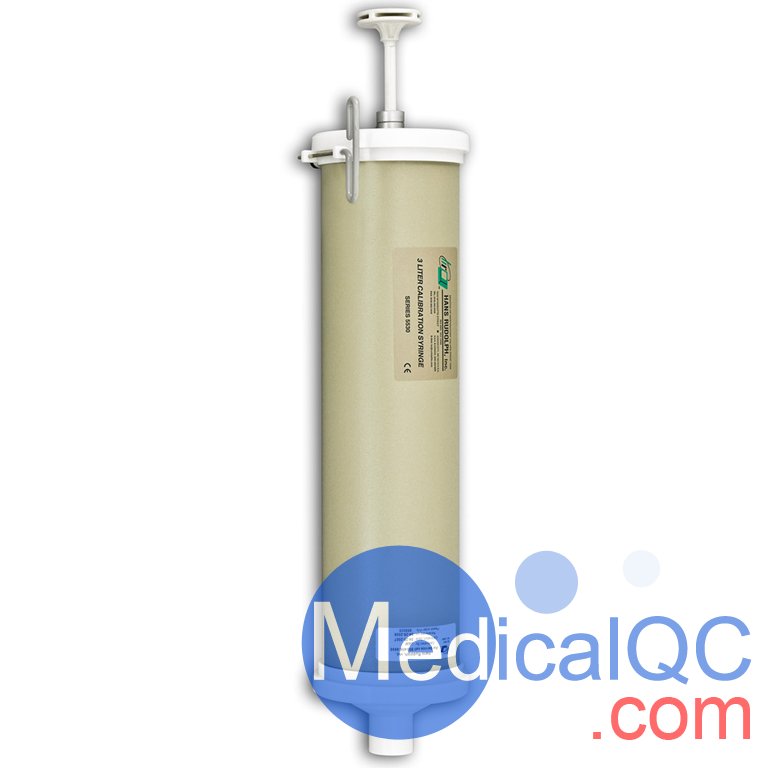

Hans Rudolph 5530校準注射器

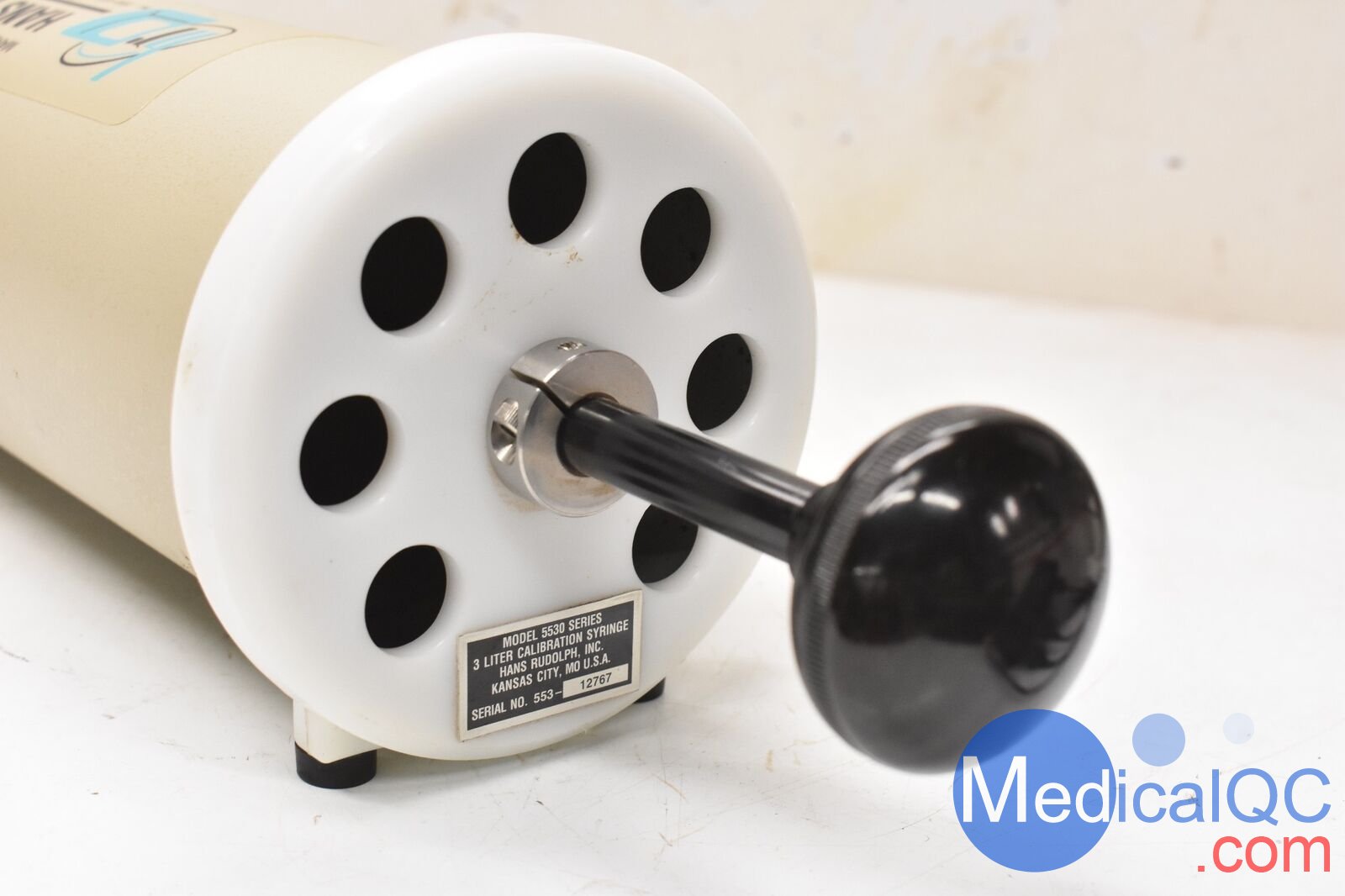

5520, 5510, 5550, 5540, 5530, 5570, 4900

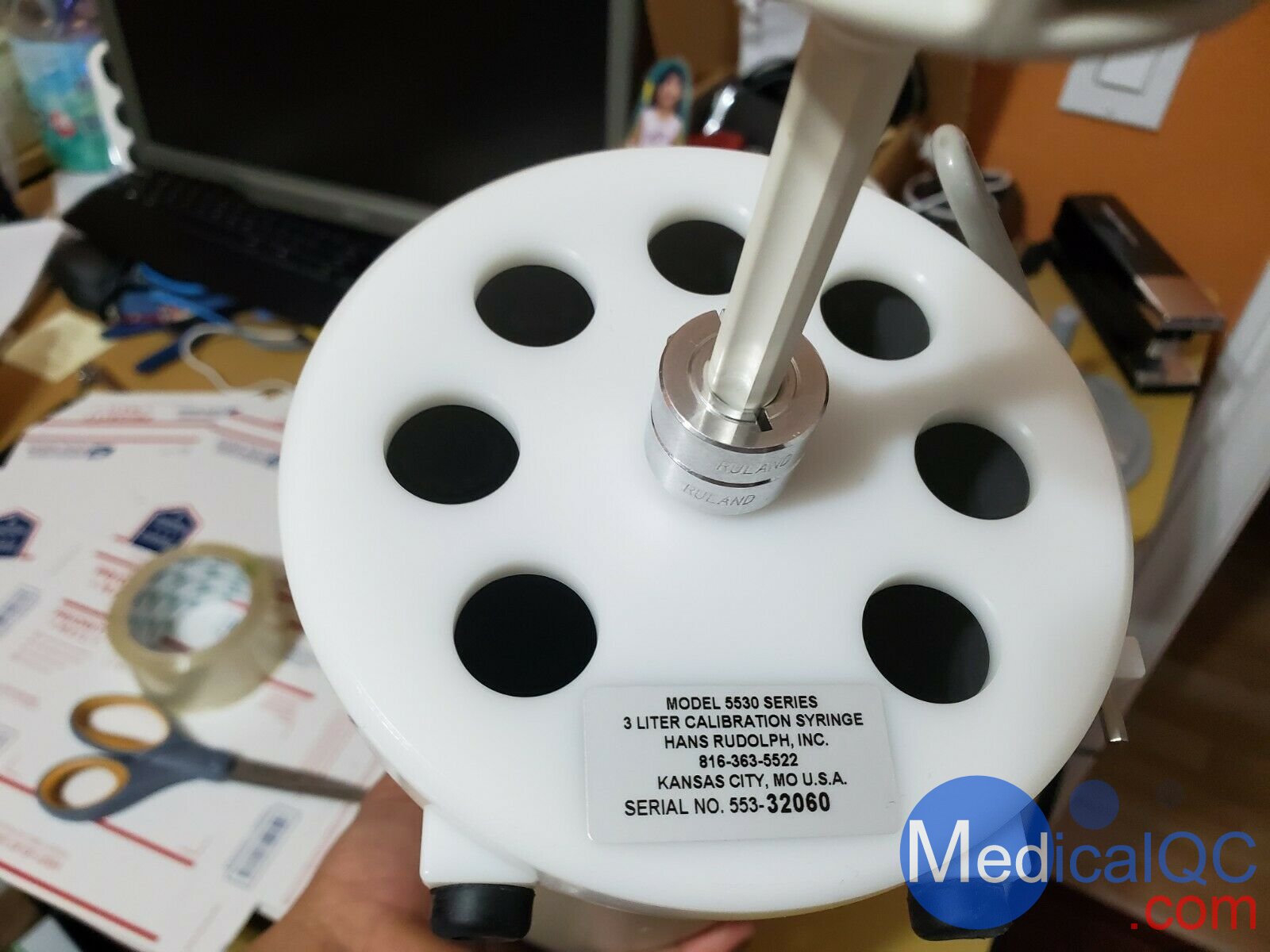

5520, 5510, 5550, 5540, 5530, 5570, 4900校準注射器


Hans Rudolph 5530校準注射器

HansRudolph校準注射器5520/5510/5550/5540/5530/5570/4900參數選型表：

型號/參數

5520

5510

5550

5540

5530

5570

4900

精度
±0.5% FS

ml

±0.05

±0.5

±2.5

±5.0

±15.0

±15.0

±35.0

總?cè)莘e

ml

10

100

500

1000

3000

3000

7000

最小容積

ml

2

20

50

50

100

3000

100



沖程容積

in

3

5

6.25

12.38

14.75

14.75

15

cm

7.6

12.7

15.8

31.5

37.5

37.5

38.1

氣缸內徑

in

0.50

1.25

2.50

2.50

4.0

4.0

6.0

cm

1.27

3.17

6.35

6.35

10.16

10.16

15.24



重量

lb

.17

.39

1.7

2

3.7

3.6

10

gm

75

175

771

907

1690

1655

4536


訂貨號：





Order Part Number



Series



Description (Total Volume &
Smallest Graduation)



Outlet Port Size

Outlet Port Type

  1. Threaded removable
  2. Integral to End Plate



112380



5520

10 ml Syringe
(2 ml graduations)

15mm OD Medical Taper 10.5mm ID



A



112381



5520

10 ml Syringe
(2 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper



A



112378



5510

100 ml Syringe
(20 ml graduations)

15mm OD Medical Taper 10.5mm ID



A



112379



5510

100 ml Syringe
(20 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper



A



112742



5550

500 ml Syringe
(50 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID



A



112743



5550



500 ml Syringe
(50 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper



A



112744



5550

500 ml Syringe
(50 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper



A



112745



5550

500 ml Syringe
(50 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)



A



112746



5550

500 ml Syringe
(50 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper



A



112706



5540

1000 ml Syringe
(50 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID



A



112707



5540



1000 ml Syringe
(50 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper



A



112708



5540

1000 ml Syringe
(50 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper



A



112709



5540

1000 ml Syringe
(50 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)



A



112710



5540

1000 ml Syringe
(50 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper



A



112028



5530

3000 ml Syringe
(100 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID



B



112231



5530



3000 ml Syringe
(100 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper



A



112232



5530

3000 ml Syringe
(100 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper



A



112233



5530

3000 ml Syringe
(100 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)



A



112567



5530

3000 ml Syringe
(100 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper



B



113391



5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)



1.375” (35mm) OD
1.125” (28.6mm) ID



B



113638



5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper



A



113611



5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)



22mm OD Medical Taper 15mm ID Medical Taper



A



113392



5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)



1.125” (28.6mm) OD
22mm ID Medical Taper



B



113568



5570

3000 ml Syringe (Pre-Set at 3000 ml Vol- ume – NO adjustment)



1.125” (28.6mm) OD
22mm ID Medical Taper



A



112092



4900

7000 ml Syringe
(100 ml graduations)

1.375” (35mm) OD
1.125” (28.6mm) ID



A



112234



4900



7000 ml Syringe
(100 ml graduations)

1.75” (44.5mm) OD x 1.125” (28.6mm) OD
Long OD Taper



A



112235



4900

7000 ml Syringe
(100 ml graduations)

22mm OD Medical Taper 15mm ID Medical Taper



A



112236



4900

7000 ml Syringe
(100 ml graduations)

2.0” ID O-ring Slip-Fit (mates 2” OD)



A



112568



4900

7000 ml Syringe
(100 ml graduations)

1.125” (28.6mm) OD
22mm ID Medical Taper



A

HansRudolph

HansRudolph 5520/5510/5540/5530/5570/4900

HansRudolph 5520/5510/5540/5530/5570/4900
SAG: HansRudolph 5530,HansRudolph 5510,HansRudolph 5570,HansRudolph 4900,漢斯魯?shù)婪蛐?zhǔn)注冊器,漢斯魯?shù)婪?HansRudolph,校準注射器
